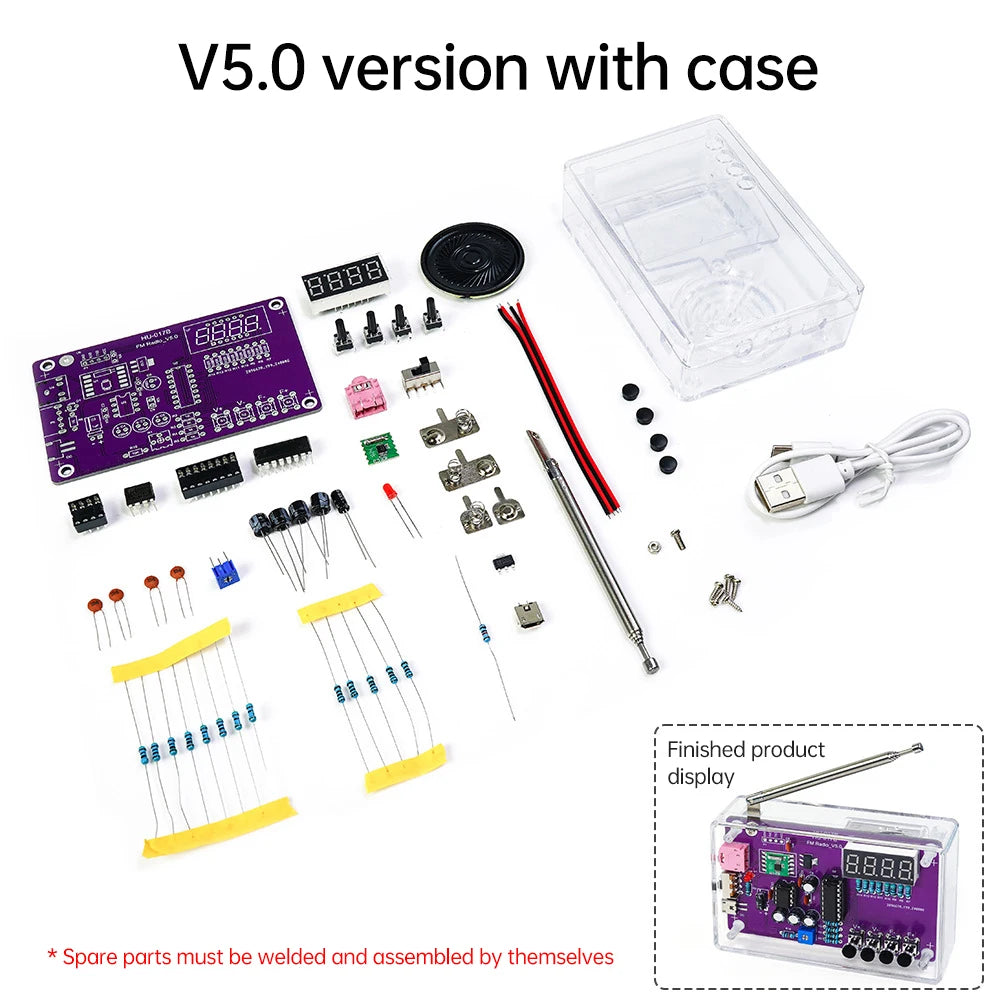

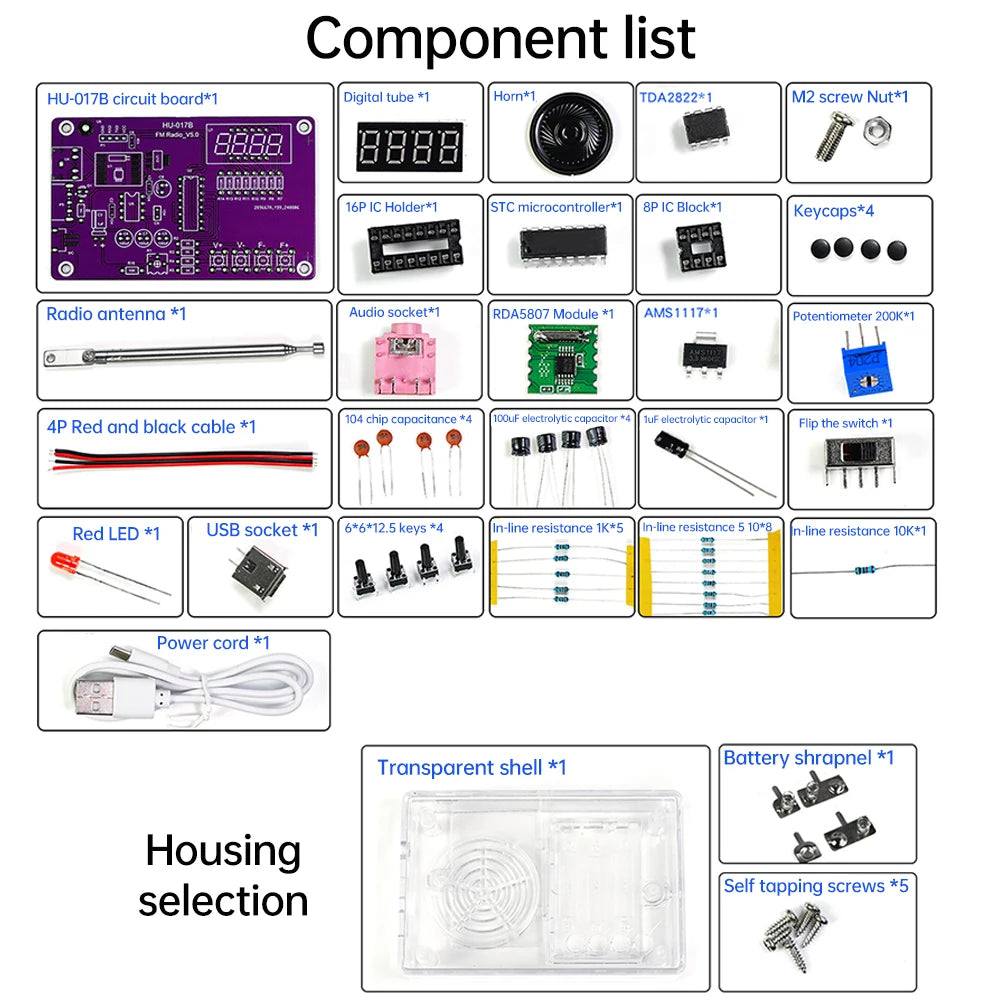

DIY FM Radio Kit

• Minimum Age: 14+
• Difficulty Level: 3
• Estimated Build Time: 3–5 hours

Why This Project Belongs in Your Lab:

Experience the satisfaction of creating something extraordinary from scratch. The DIY FM Radio Kit is a precision-cut project designed to challenge your mechanical logic and reward you with a high-quality finished masterpiece.

Technical Specifications

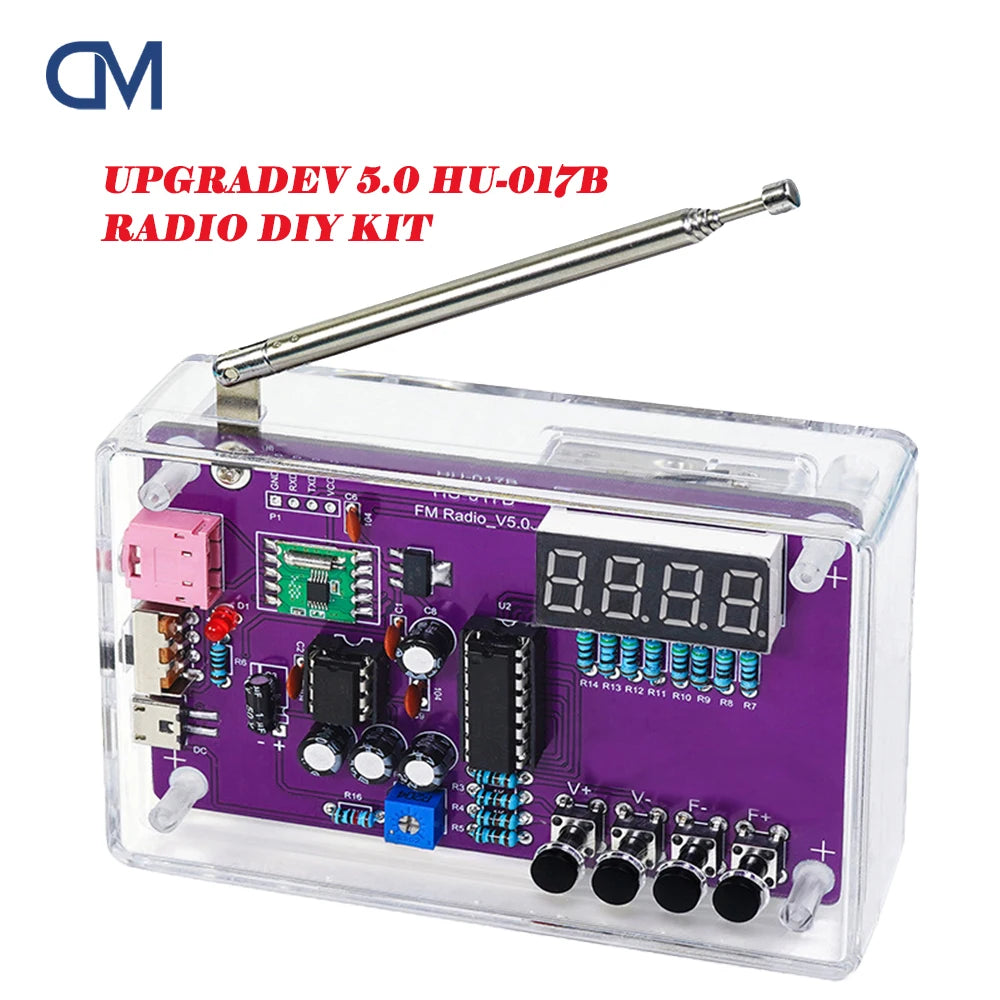

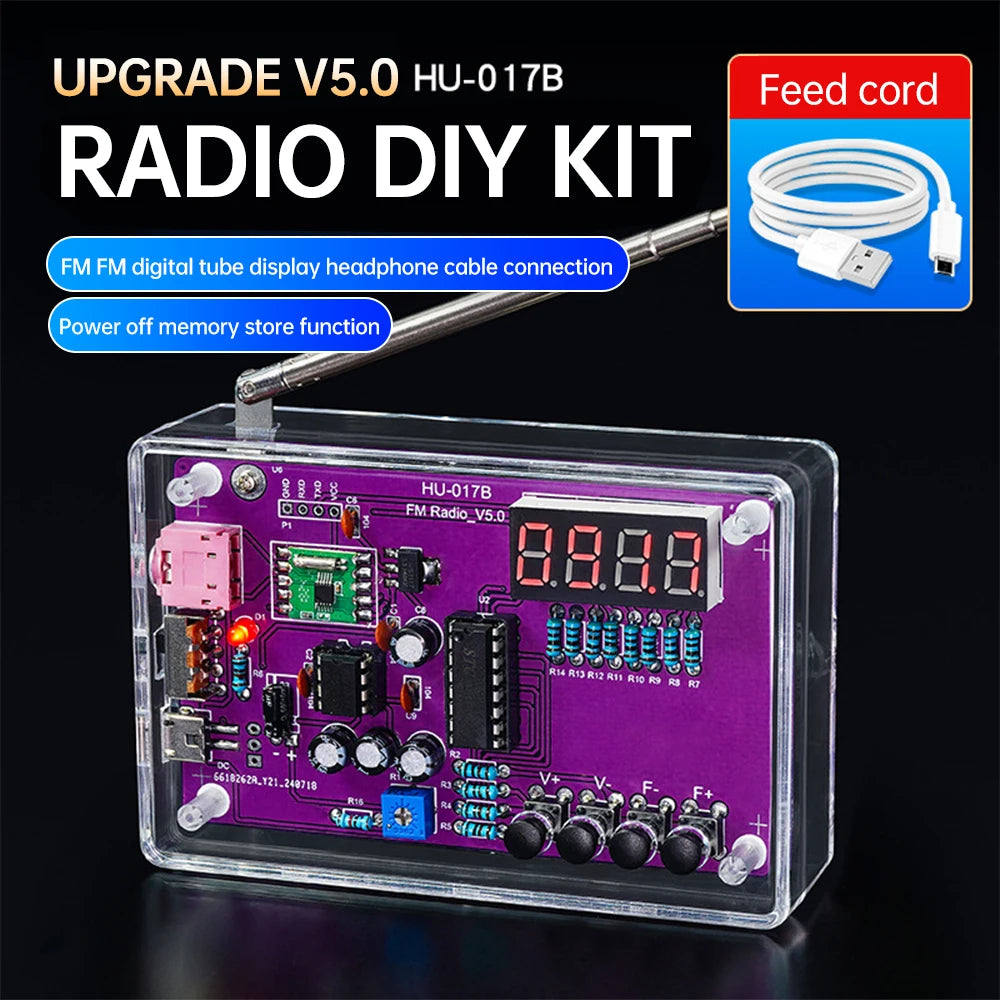

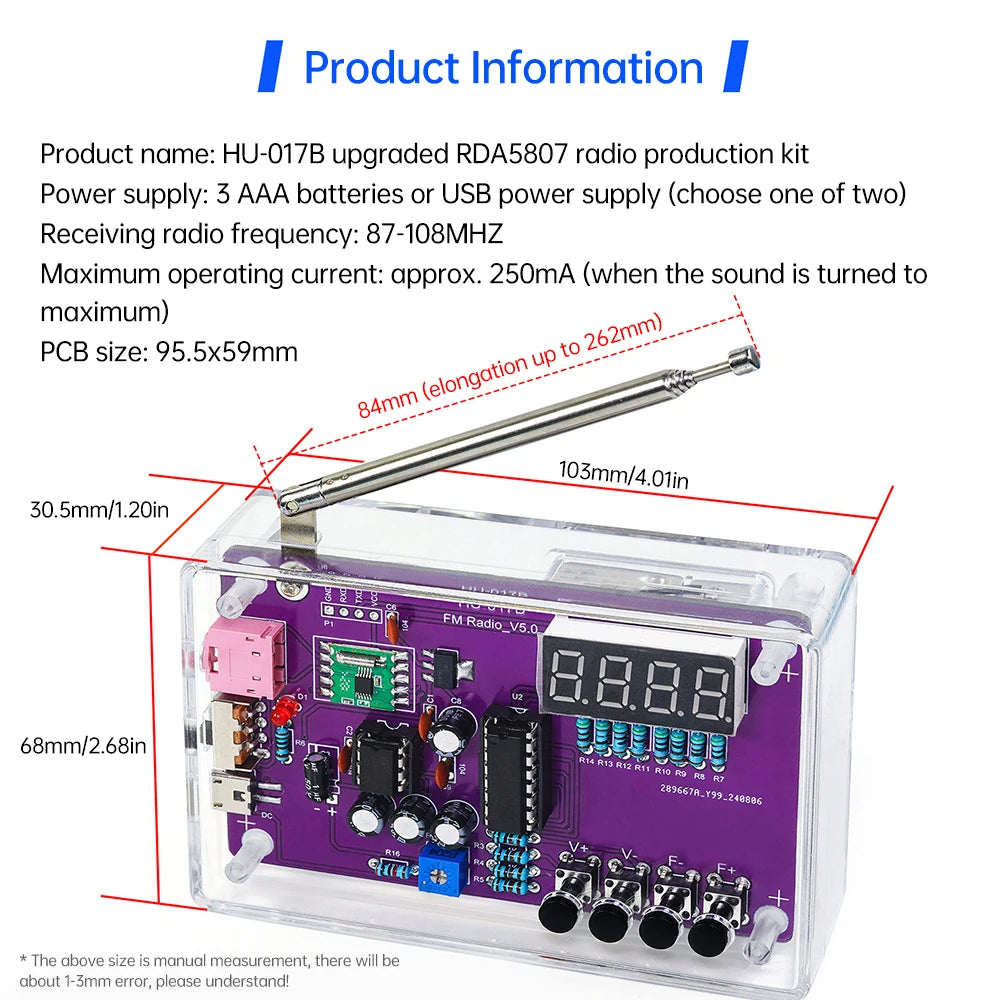

• Model: HU-017B (Upgraded V5.0)

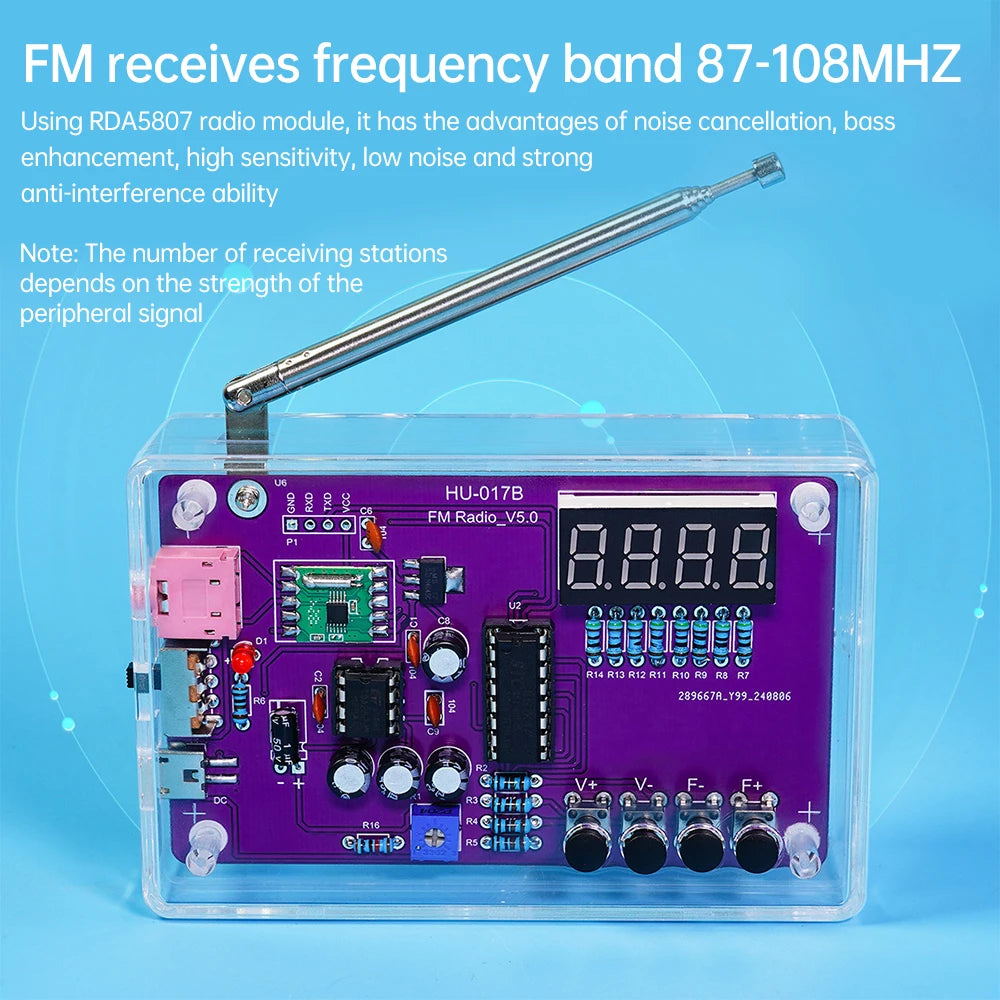

• Frequency Range: 87–108MHz (Standard FM Band)
• Radio Module: RDA5807s (Integrated Signal Processing)
• Power Amplifier: TDA2822 Integrated Circuit

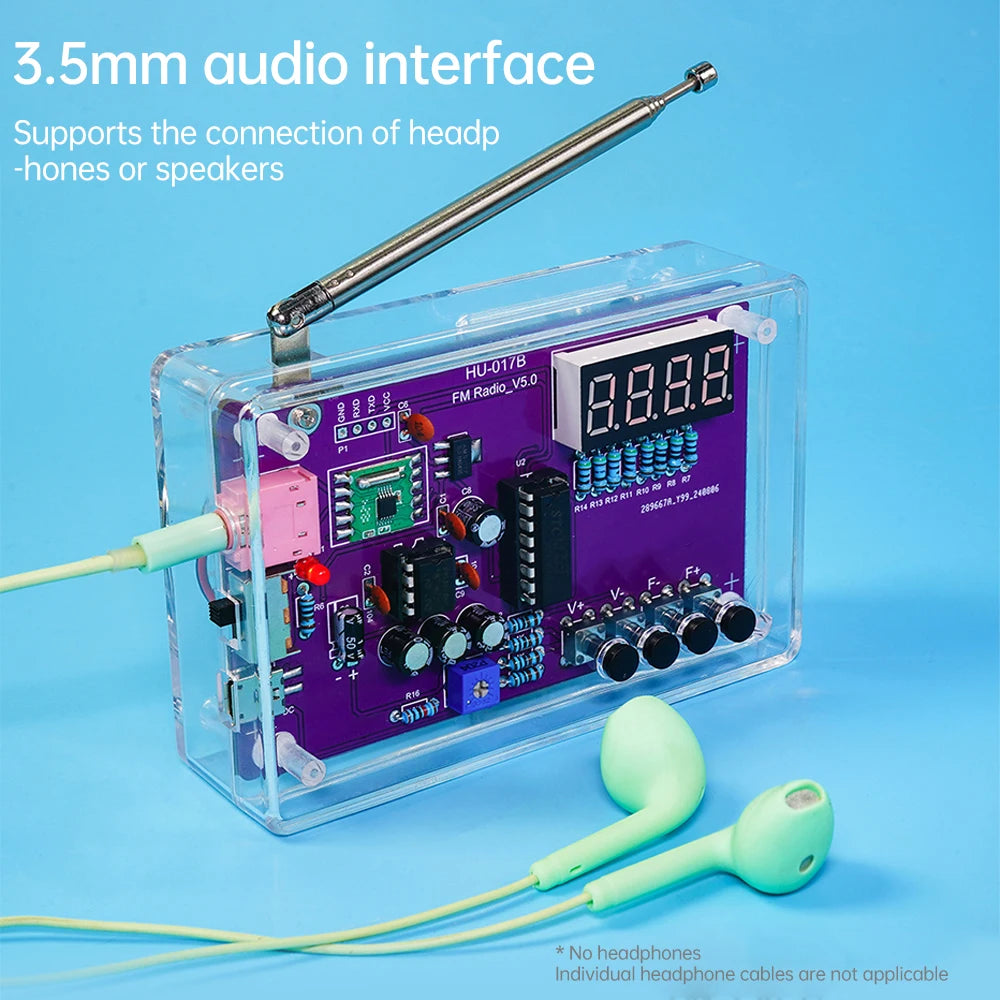

• Output: 8Ohm 0.5W High-Fidelity Speaker
• Supply Voltage: DC 3V – 5V

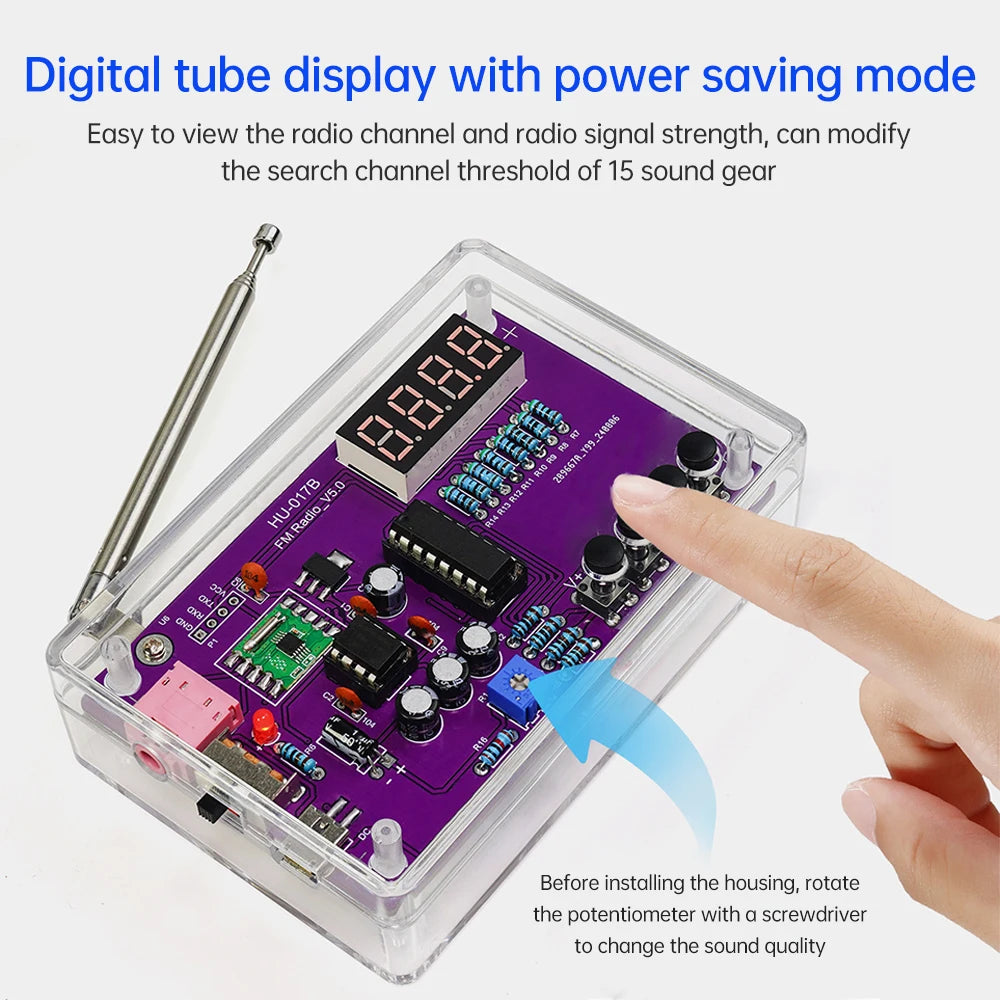

• Display Type: 4-Digit LED Tube (Frequency & Signal Strength)
• Package: TQFP Surface-Mount Integration
• Digital Signal Precision: The V5.0 features an upgraded search threshold, allowing you to capture weak signals that other DIY kits miss. The digital tube display gives you real-time feedback on both your tuned frequency and your current signal strength.

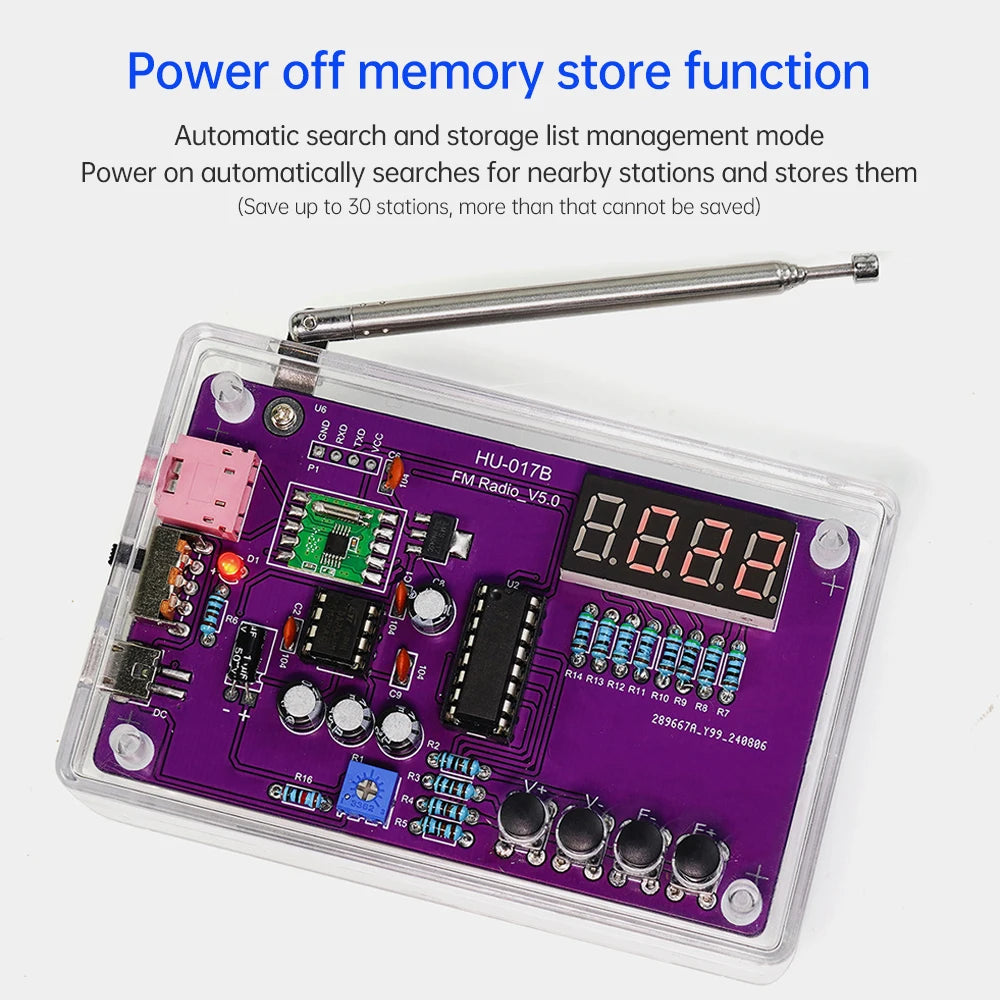

• Smart Memory Management: Never lose your station again. This kit includes power-off memory and automated list management, allowing the radio to scan, store, and recall your favorite stations even after the batteries are swapped.
• High-Fidelity Amplification: The power section utilizes the TDA2822 IC, delivering a crisp, loud output through the included 0.5W speaker. It features built-in noise cancellation to ensure your audio remains clear even in interference-heavy environments.

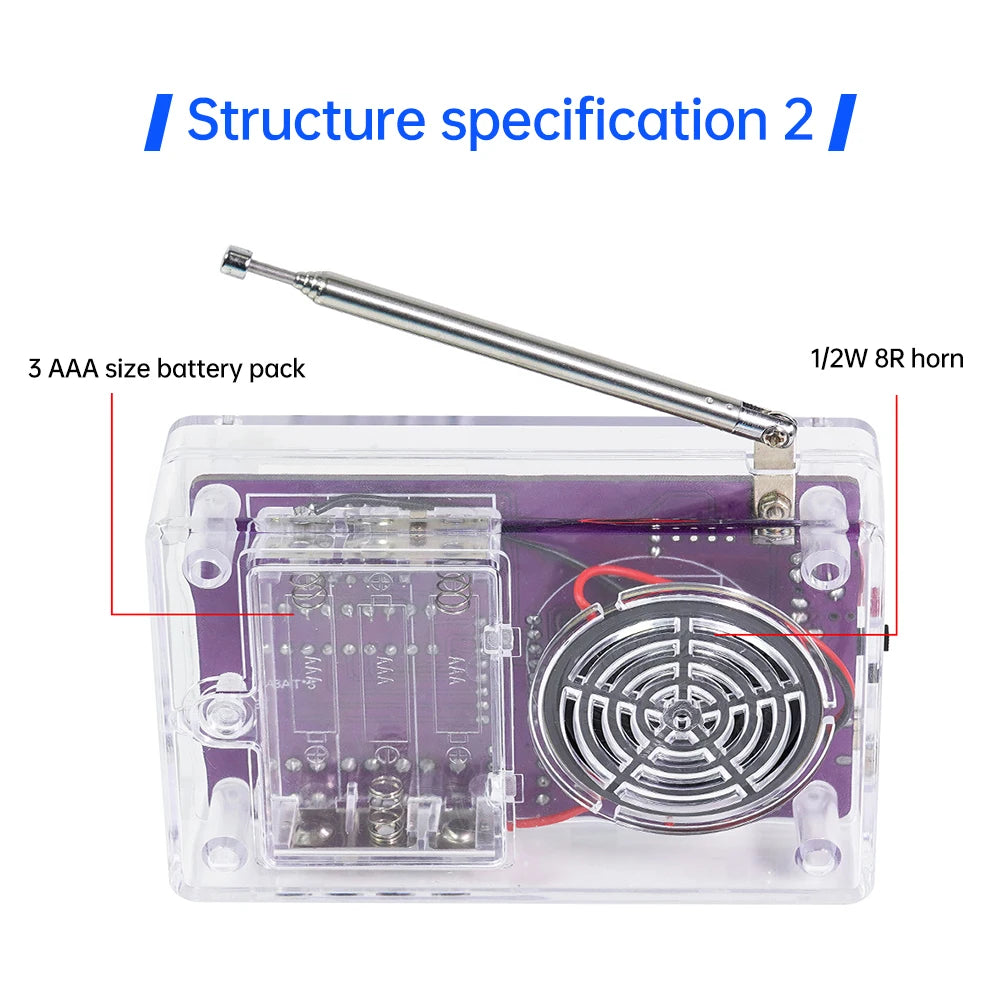

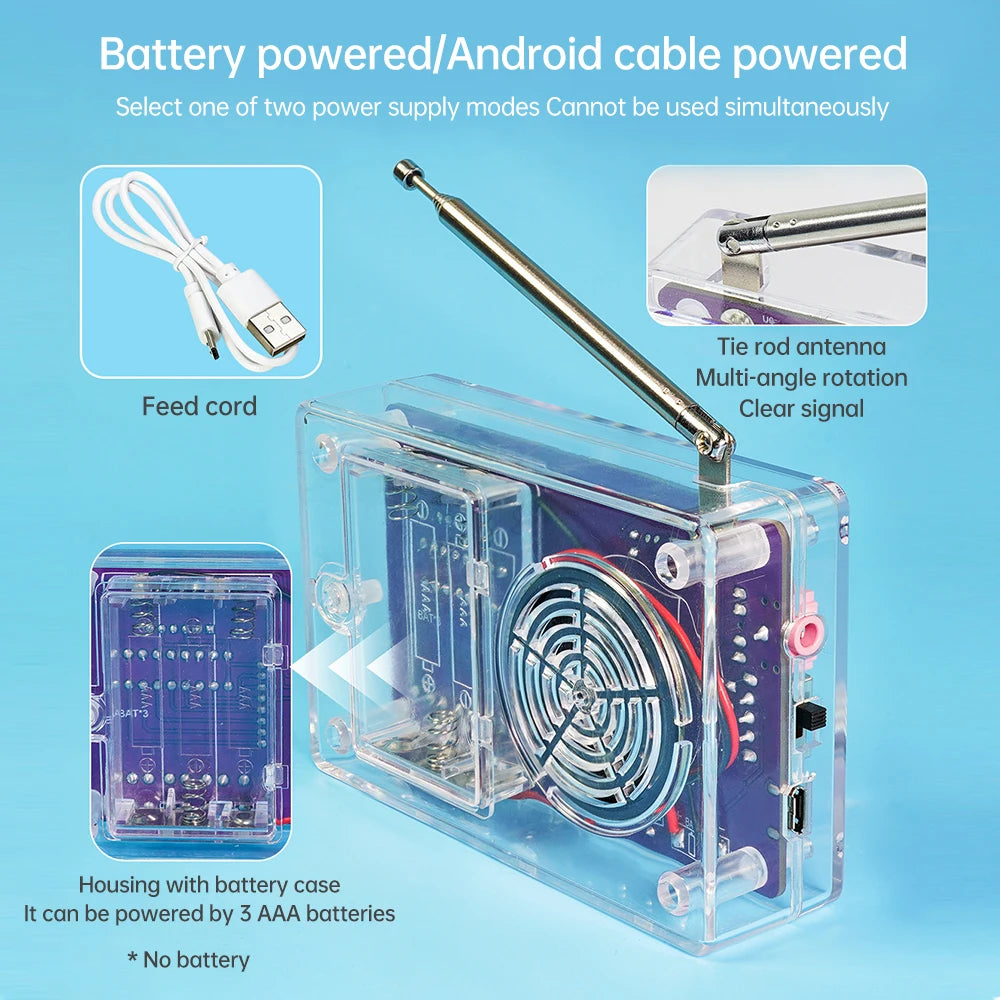

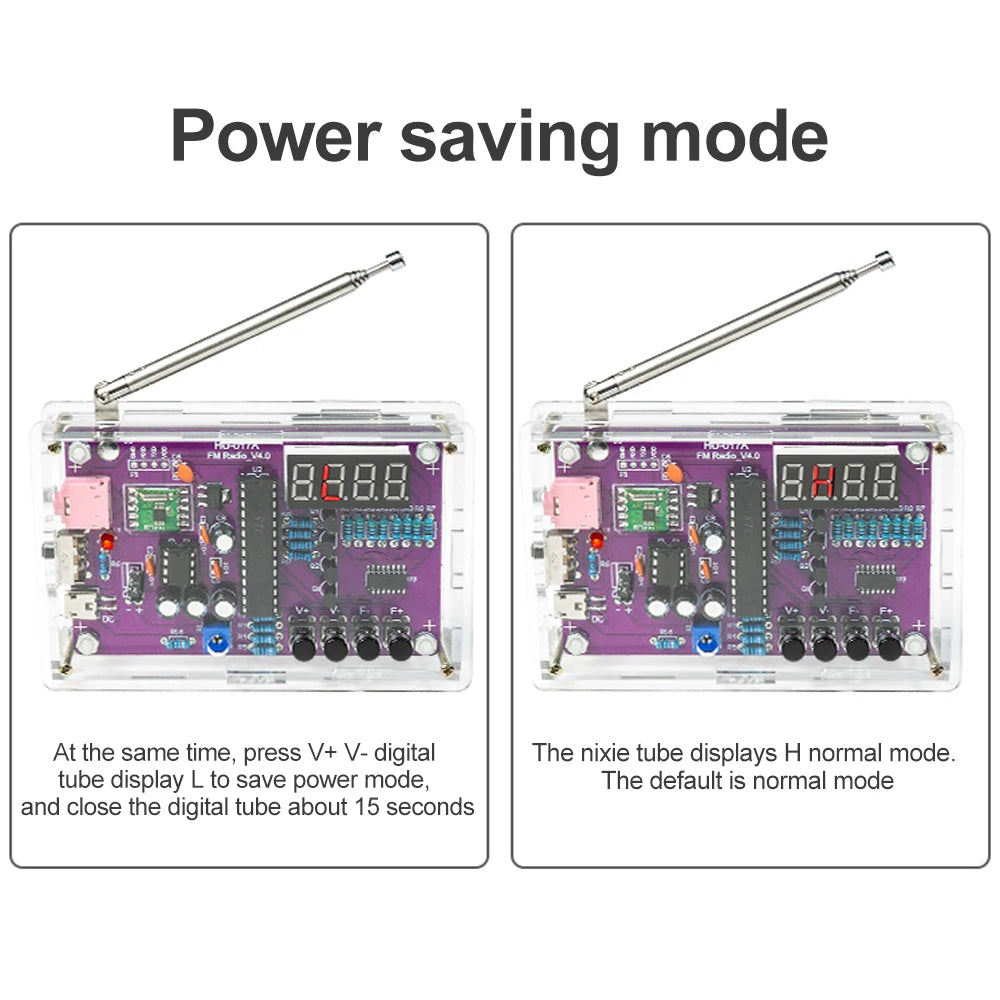

• Energy Efficient Logic: Engineered for the mobile workshop, the HU-017B includes a dedicated power-saving mode and an integrated transparent battery box (optional), ensuring your project looks as clean as it sounds.

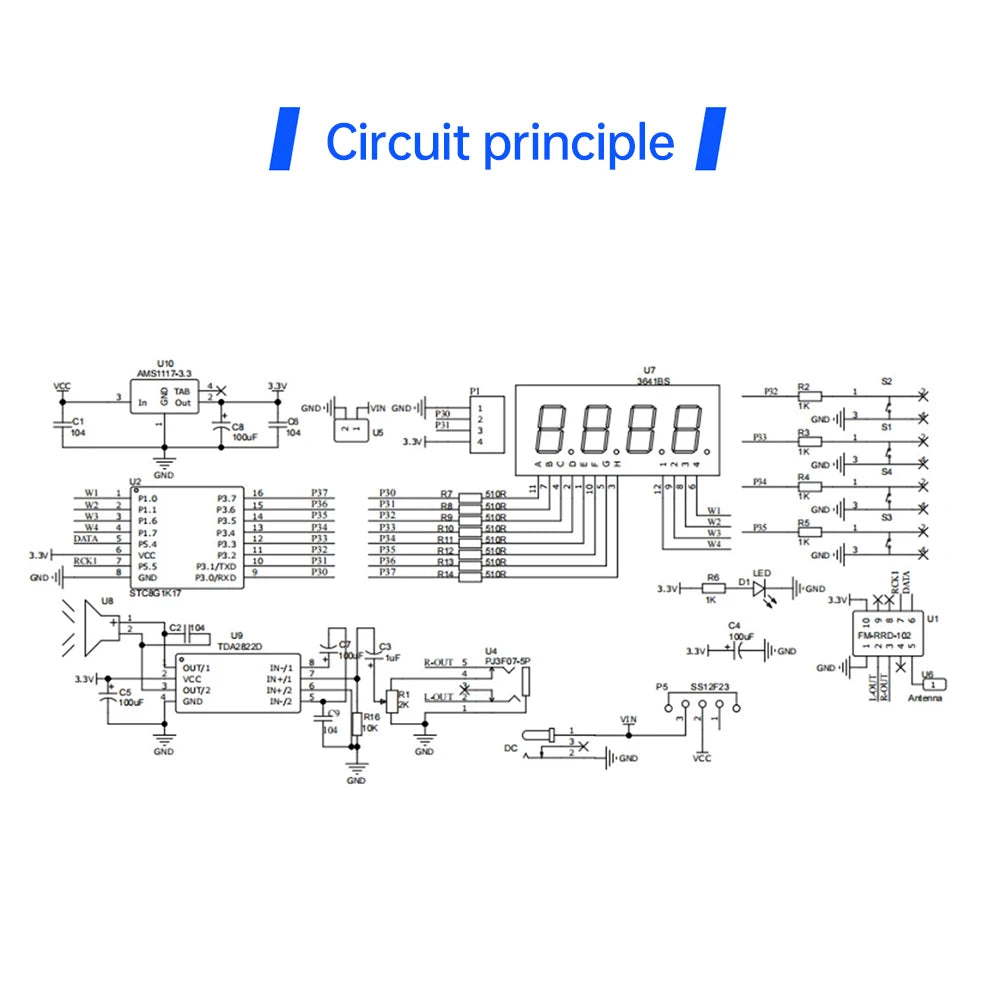

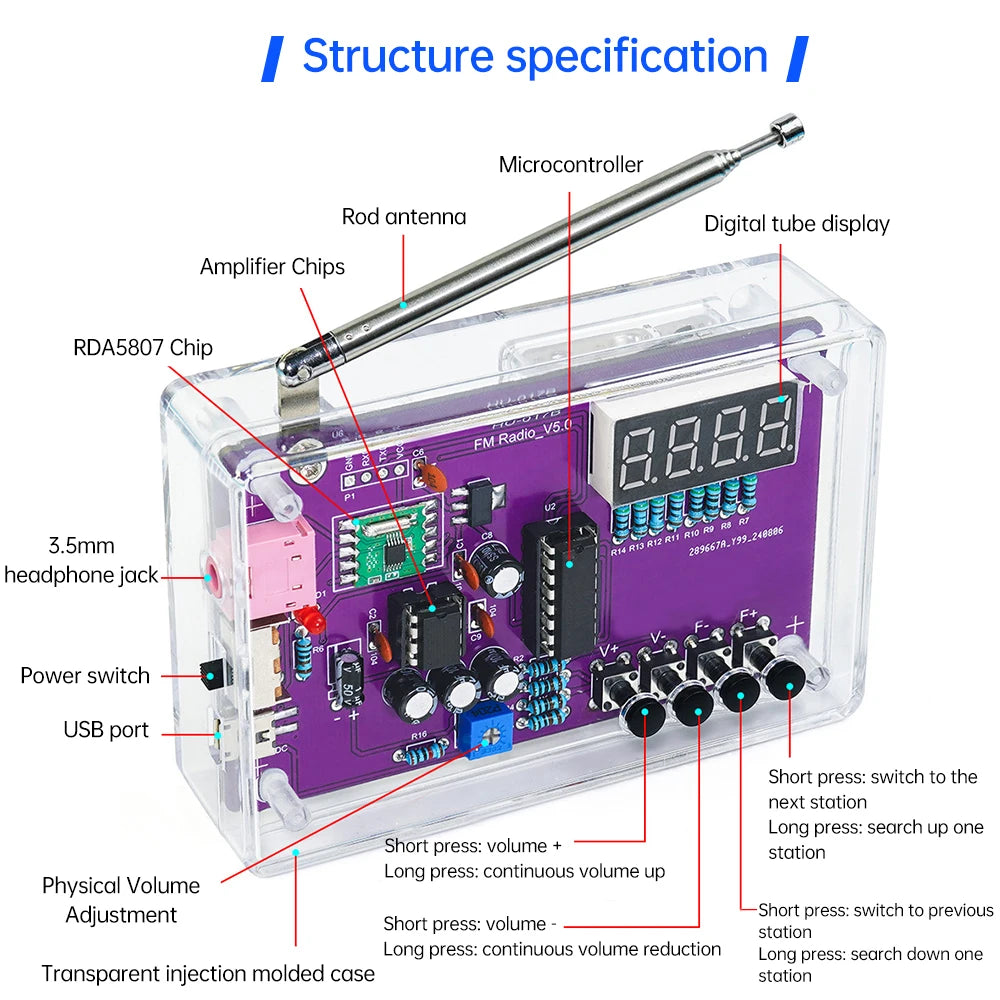

• Circuit Architecture: Combined MCU control with dedicated RF and Audio stages.
• Volume Control: 15-Level digital potentiometer adjustment.

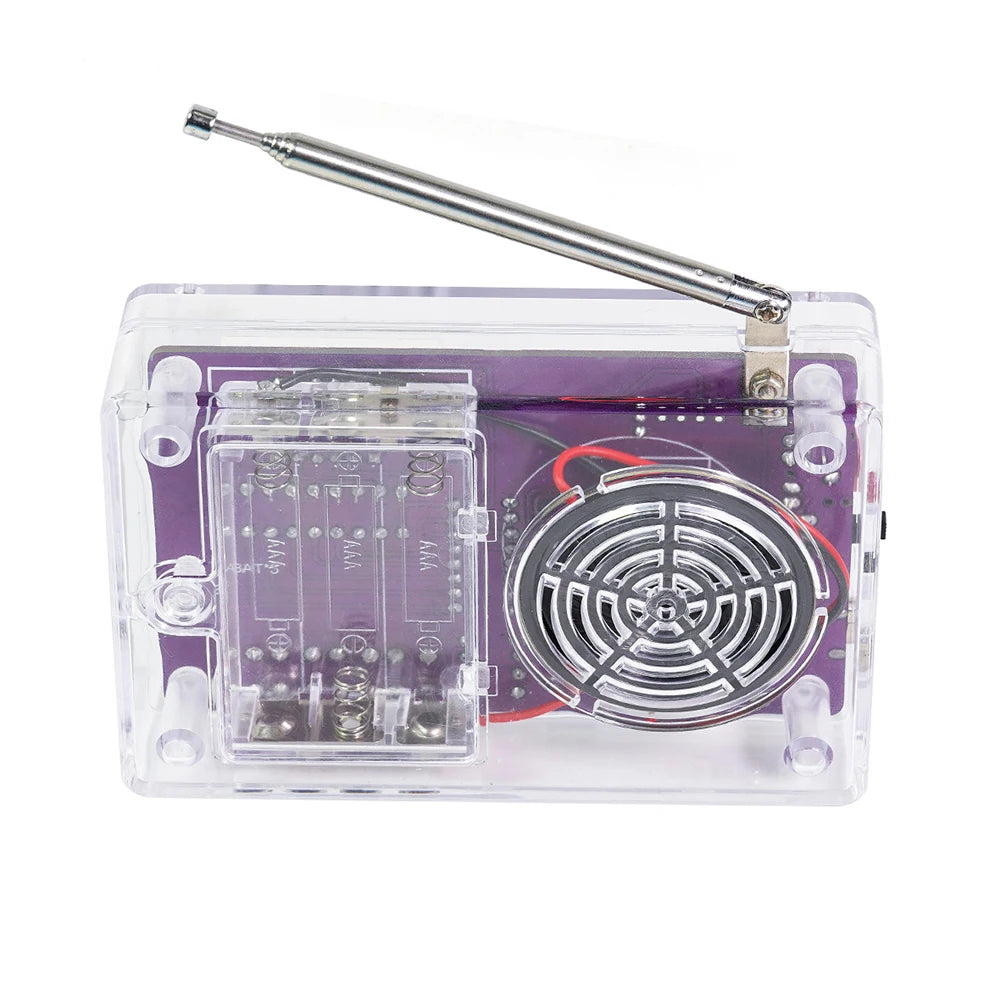

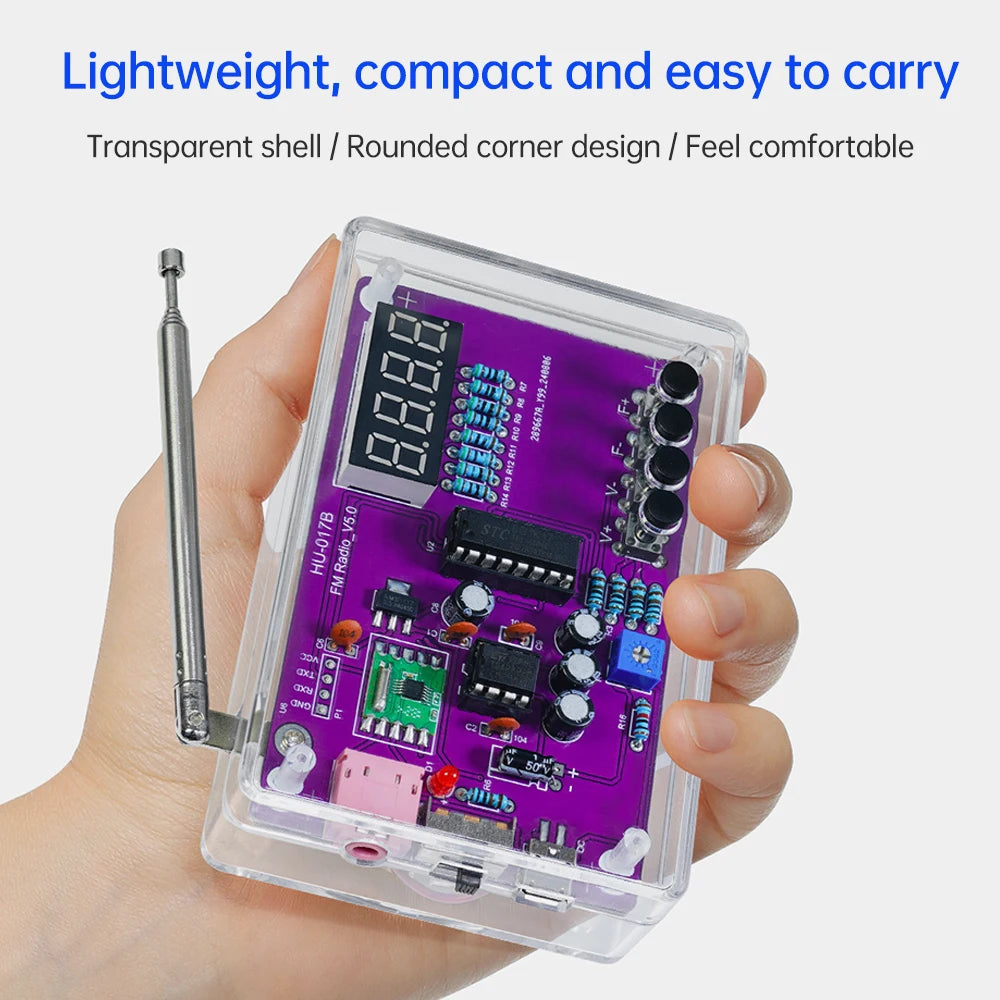

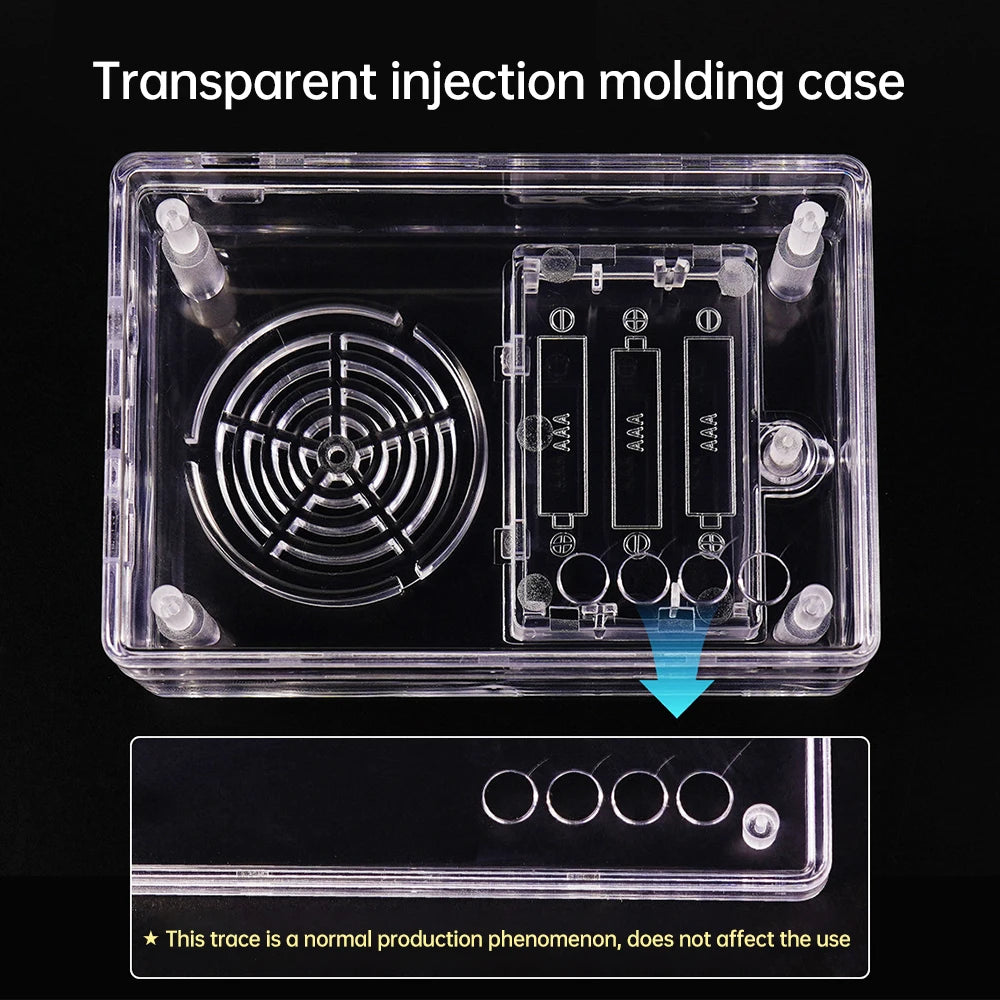

• Chassis Design: Professional-grade transparent housing with integrated back cover for a "clean-build" aesthetic.
• Enhancements: Soft-mute logic and bass-boost circuitry for superior audio fidelity.
• The TQFP Challenge: This kit features a TQFP package, offering a fantastic opportunity to practice fine-pitch soldering. Use a fine-tip iron and a touch of flux to ensure those integrated circuits are seated perfectly.
• Calibration: Once powered on, use the automated search function to populate your station list. You can manually adjust the search threshold if you are in a high-interference area to filter out ghost signals.
• Antenna Tip: For the best reception in a basement or workshop, ensure your antenna lead is fully extended. The RDA5807s is high-sensitivity, but a clear "line-of-sight" to the airwaves always helps.
